Measure angle between members

The measure angle between members tool allows you to measure the dimensions and angle between intersecting members.

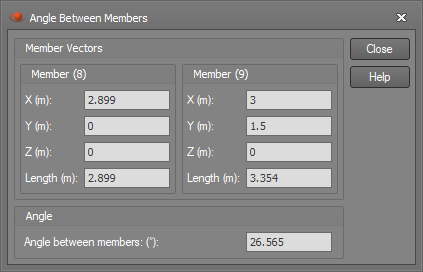

After selecting two intersecting members, right-click and select "Measure Angle Between Members" from the popup menu that appears. The member dimensions and angle between the two members is displayed in the following form.

Alternatively you can select one member, right-click and select "Measure Angle Between Members" from the pop-up menu that appears, then select the second intersecting member once prompted.
