View analysis result diagrams

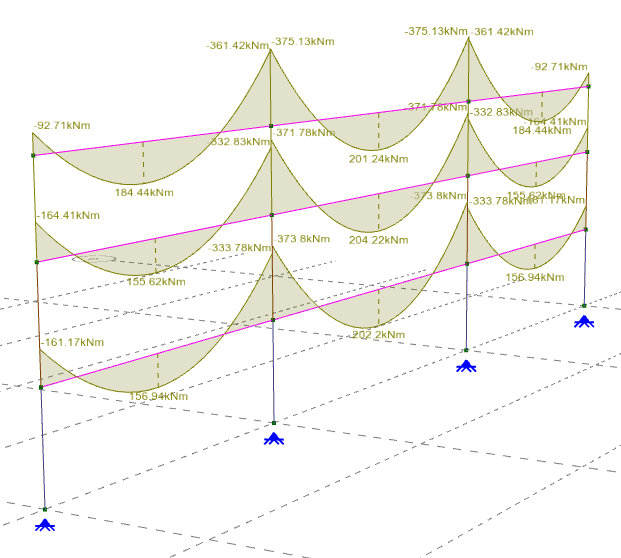

You can show analysis result diagrams including displacements, bending moments, shear forces, axial forces, torsions, stresses and reactions by clicking the , , , , , or toolbar buttons.


Diagrams of different types can be superimposed together. For example, it is possible to include both bending moment and shear force diagrams together.




Reactions can be limited to specific directions for less crowded reaction diagrams.
