View steel connection symbols

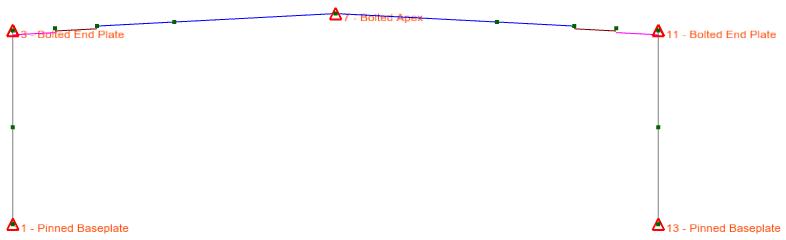

If steel connections have been defined, this tool allows you to label them with a small triangle symbol that can also include the connection number and type.



You can view the steel connection symbols by clicking the button in the side toolbar. The steel connection numbers and types can be turned on via the "Show steel connection labels" item in the button in the side toolbar.









See also Steel connection design
