Query concrete slab design results

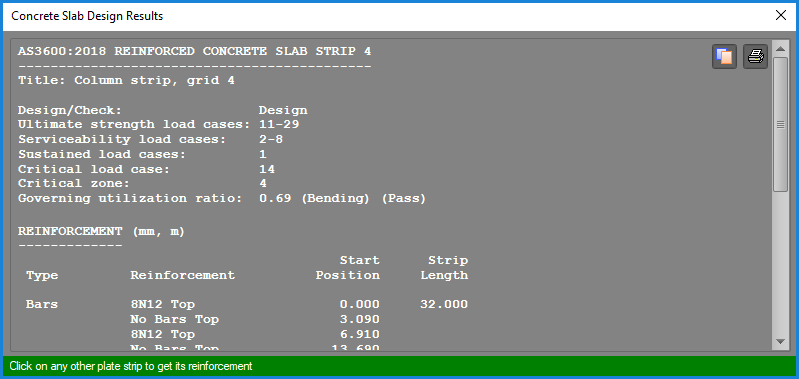

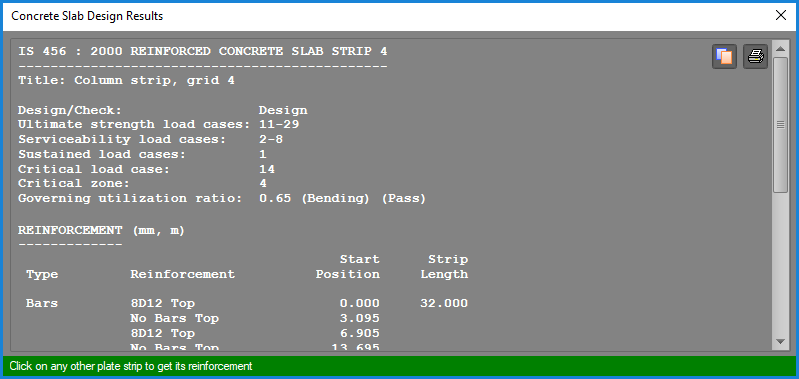

After a concrete slab strip design, right-click on any designed slab strip and then select "Concrete Slab Design Results" from the popup menu that appears. The scrollable results form shown below displays a useful summary of the design results for the slab strip you selected.



Note that if you are using the finite element method for reinforcement design then you should use the "Query reinforcement" tool instead.







While the form is open, you can simply click on any other slab strips to have their design results displayed.



To get a fully detailed concrete slab strip design report, refer to "Output", "Strip method" or "The concrete manager".
