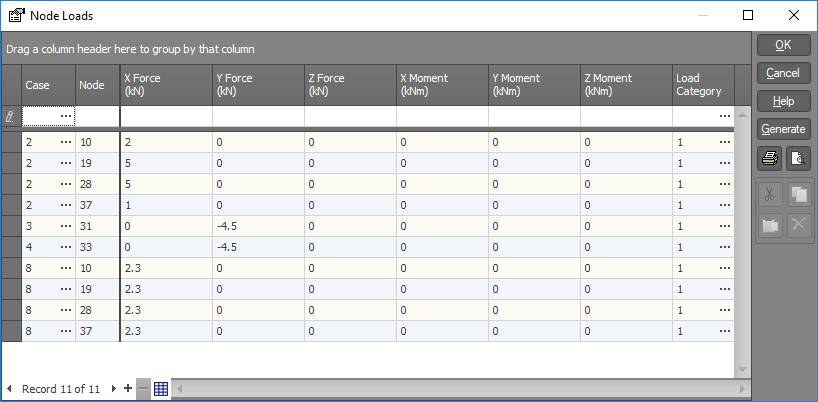

Node load data



Concentrated forces and moments may be applied to any node along or about the global X, Y and Z axis directions. If a load is applied to a restrained degree of freedom then that load is simply added to the final reaction.



Node loads may be applied in any number of load cases and may be combined with other load types within the same load case.



Case

Load case to contain node loads.



Node

Node to be loaded.



X, Y and Z forces

Node forces (global axes).



X, Y and Z moments

Node moments (global axes).



Load category

The load category column lets you specify which load categories the loads will go into. For more information refer to "Load categories".



See also Node loads text.

See also Datasheet Input.

See also Node loads.

See also View diagrams.
